Large Capacitive Touch Screen Kiosk Touch Panel 43 Inch Lcd Touch Panel

Product Categories
Shenzhen Touch-China Electronics Co.,Ltd.
Contact Now

Large Capacitive Touch Screen Kiosk Touch Panel 43 Inch Lcd Touch Panel

  • 1
  • 2

Brand Name : Touch-China

Model Number : ZCC-5102

Certification : CE, Rohs, FCC

Place of Origin : china

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20K pcs / month

Delivery Time : 15-20days

Packaging Details : Standard export package

size : 43inch

Interface : USB

Touch Points : 10points

TP Structure : Cover glass+UV glue+ITO sensor glass

Surface hardness : More than 7H

Input method : Finger or capacitive pen

Working voltage : USB(5V)

TP type : COB

Transmittance : ≥85%

IC controller : Silicon Works

Contact Now

43inch Capacitive Kiosk Touch Panel for Touch Kiosk Monitors or Touch Display

Product informations:

Size:

43inch

Total Thickness:

4.8±0.2mm

Outline of Cover Lens:

986* 584.8±0.5mm

Outline of ITO Sensor:

982* 578.3±0.5mm

Viewing Area:

942.7* 531.2±0.5 mm

Active Area:

944.7* 533.2±0.5mm

TP Structure:

G+G

Controller:

ILITEK, WEIDA, EETI, Silicon Works etc.(Customized)

Cover glass thickness:

1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)

Cover glass treatments:

AG, AR, AF, AE (Customized)

CTP interface:

USB

Operating system:

Win7, Win8, Win10, WCE, Android, Linux, XP

Working temperature and humidity

-20°C~70°C,20~85% RH, non-condensing

Storage environment and humidity :

-30°C~80°C, 20~85% RH, non-condensing

Transparency

≥85%

Response time:

<10ms

ESD Air discharge:

8KV

ESD Contact discharge:

4KV

Pen hitting life:

≥10,000,000/point

Pen sliding Durability:

≥500,000 times

Finger Touch life:

≥35,000,000 times

Certifications:

CE, FCC, Rohs

Aspect ratio:

16:9

Report rate:

100HZ

Input method:

Finger or capacitive pen

Warranty:

1 Year

Projected Capacitive Touch panel:

Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.

  1. There is no air gap between layers like in a resistive touch panel.

  2. The patterns on the two parallel ITO layers form a grid of capacitors.

  3. The electric fields of these capacitors are projected through the top layer of glass.

  4. When the user places a finger near the top surface of the touch panel, it couples with the electric fields.

  5. This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.

  6. An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

Delivery Time:

  1. Samples in stock: 1~3 working days

  2. Customized project: 10~15days for samples

  3. Mass production: 10~18days

FAQ:

  • Q. Are you a factory or trading company?

  • A: We are a factory.

  • Q. Does your products have CE&Rohs certificates?

  • A: Yes.

  • Q. What’s the shipping method?

  • A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

  • Q. What’s the payment methods?

  • A: T/T, 30% deposit before production, the balance before shipment.

  • Q. What size of touch screen can you manufacture?

  • A: 3.5” to 65”, the bigger size are researching and developing.

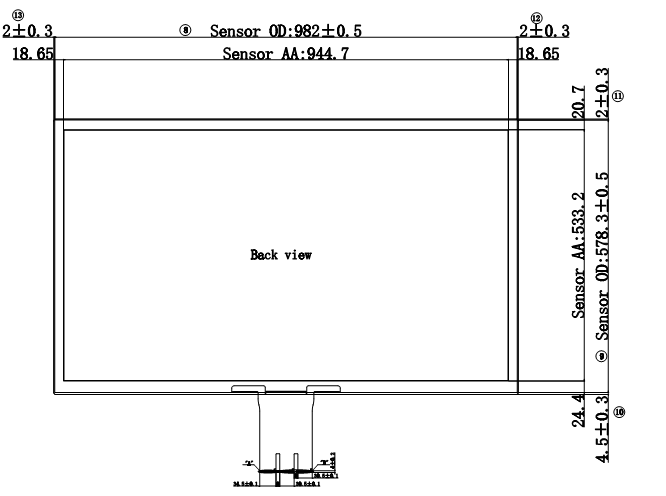

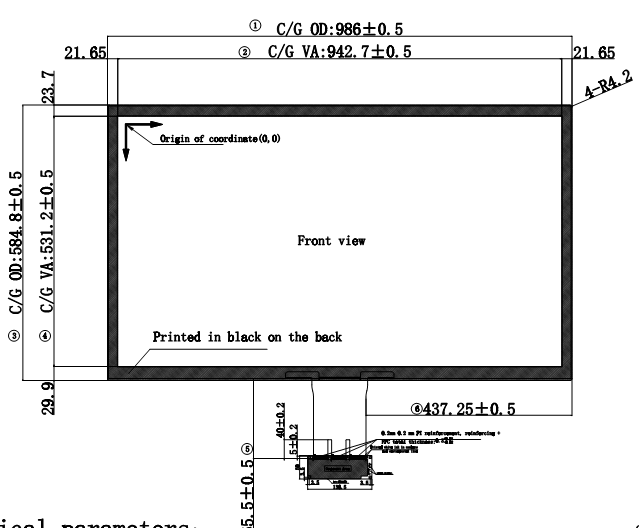

Drawings:
Large Capacitive Touch Screen Kiosk Touch Panel 43 Inch Lcd Touch Panel

Large Capacitive Touch Screen Kiosk Touch Panel 43 Inch Lcd Touch Panel
