TFT 15 Inch Capacitive Touch OCA Optical Bonding Module

Name: TFT 15 Inch Capacitive Touch OCA Optical Bonding Module
Brand: Touch-China
Price: 1 USD

Brand Name : Touch-China

Model Number : ZCQTH-6820

Certification : CE, Rohs, FCC

Place of Origin : china

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20K pcs / month

Delivery Time : 10-15days

Packaging Details : Standard export package

size : 15inch

Resolution : 1024*768

Touch Points : 10points

Touch Screen : Capacitive touch screen

Surface hardness : More than 7H

Input method : Finger or capacitive pen

Working voltage : USB(5V)

Bonding way : Optical bonding (OCA)

Transmittance : ≥85%

Brightness : 300cd/㎡

Contact Now

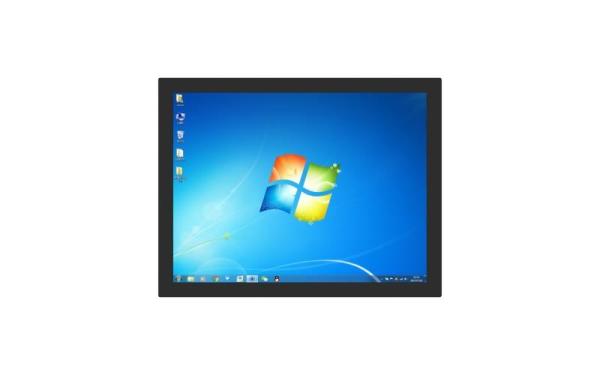

15Inch Capacitive Touch with TFT of Optical Bonding Module with OCA

Product Specification:

Items	Parameters
LCD Screen Size	15 inch
Aspect ratio	4:3
Resolution	1024*768
Visible Area	(H)304.128mm×(V)228.096mm
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Contrast Ratio	600:1
Response Time	8 (Typ.)(Tr/Td) ms
Colors D	8Bit 262K/16.7M , 60% NTSC
Scanning Frequency	60Hz
Interface	LVDS(See 1.2 for details)
Operation Voltage	3.3V

Back light Source	WLED
Center Luminance of White	300cd/㎡
Operating Lift of backlight	Min. 30K hours
Operation Voltage	12V (for reference)
Operation Current	Typ current:240ma
BLU Power consumption	Max. 10.92W(for reference)
Touch Screen Type	10 point G+G capacitive touch panel
Touch Mode	Finger or capacitor pen
Response Speed	10ms
Reported Rate	100Hz
Resolution	≥4096×4096
Touch Times	Durable single-point≥30 million times
Interface	USB
Working Voltage	Typical value+5VDC
Glass Thickness	Total 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm)
Surface Treatment	NO
Surface Durability	Surface hardness equals glass, Moh's hardness level≥7
Transmittance	≥85%
Bonding Way	Optical bonding
Bonding Material	OCA
Thickness	0.175mm
Modele Size	(W)421mm×(H)346mm×(T)14.8mm
Net Weight	1.52KG
Working Temperature	-20℃~+60℃
Storage Temperature	-20℃~+60℃
Working Humidity	≤85%RH(non-condensing)
Storage Humidity	≤85%RH(non-condensing)

LVDS Interface Pin Define:

CN1 socket(Module size):185083-20121 (P-TWO ELECTRIC TECHNOLOGU CO,.LTD)

Pin NO.	Symbol	Signal	Input data signal:8bit	Input data signal:6bit
1	VCC	Power supply	Power supply
2	VCC	Power supply	Power supply
3	GND	Ground	Ground
4	REV	Selection of scan direction	High:Reverse scan Low or Open:Normal scan
5	D0-	Pixel data	R0-R5,G0
6	D0+	Pixel data	R0-R5,G0
7	GND	Ground	Ground
8	D1-	Pixel data	G1-G5,B0-B1
9	D1+	Pixel data	G1-G5,B0-B1
10	GND	Ground	Ground
11	D2-	Pixel data	B2-B5,DE
12	D2+	Pixel data	B2-B5,DE
13	GND	Ground	Ground
14	CLK-	Pixel data	Pixel clock
15	CLK+	Pixel data	Pixel clock
16	GND	Ground	Ground
17	D3-	Pixel data	R6-R7 G6-G7 B6-B7	Ground
18	D3+	Pixel data	R6-R7 G6-G7 B6-B7	Ground
19	NC	Non connection	--
20	SEL6/8bit	Selection of the number of colors	LOW	High or Open

Capacitive touch panel:

Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.

Delivery Time:

Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days

FAQ:

Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 86”, the bigger size are researching and developing.

Technical Drawings:

TFT 15 Inch Capacitive Touch OCA Optical Bonding Module
