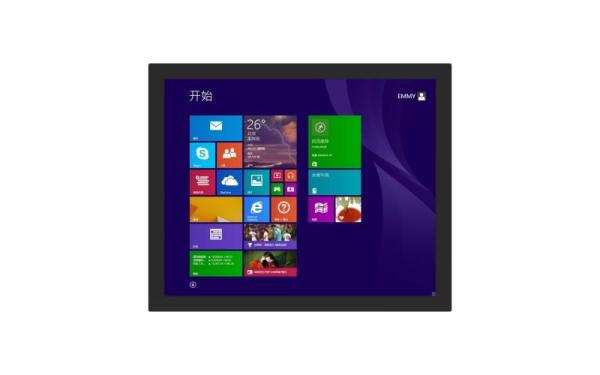

Rohs FCC 19 Inches Display Bonding ITO Capacitive Touch Panel
19inches Optical Bonding ITO Capacitive Touch Panel For Electric Equipments And Automatic Office Facilities
Product Description:
It’s a kind of projected touch panel with USB interface. It can support win7,win8 OS and can realize 10 finger point touch.
| Category | Items | Explain |
| LCD PANLE | Screen Size | 19 inch |
| Aspect ratio | 5:04 |
| Resolution | 1280×1024 |
| Visible Area | (H)376.32mm×(V)301.056mm |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Contrast Ratio | 1000:01:00 |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) ms |
| Colors D | 8Bit 16.7M , 72% NTSC |
| Scanning Frequency | 60Hz |
| Interface | LVDS(See 1.2 for details) |
| Operation Voltage | 5V |
| Backlight | Back light Source | WLED |
| Center Luminance of White | 350cd/㎡ |
| Operating Lift | Min. 30K hours |
| Operation Voltage | 41V~43.2V (for reference) |
| Operation Current | Typ current:60ma |
| BLU Power consumption | Max. 10.6W(for reference) |
| Touch Screen | Touch Screen Type | 10 point G+G capacitive touch panel |
| Touch Mode | Finger or capacitor pen |
| Response Speed | 10ms |
| Reported Rate | 100Hz |
| Resolution | 4096×4096 |
| Touch Times | Durable single-point≥30 million times |
| Interface | USB |
| Working Voltage | Typical value+5VDC |
| Glass Thickness | Total 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm) |
| Surface Treatment | NO |
| Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 |
| Transmittance | ≥85% |
| Bonding method | Bonding Way | Optical bonding |
| Adhesive Material | OCA |
| Thickness | 0.175mm |
| Size and packaging | Modele Size | (W)421mm×(H)346mm×(T)14.8mm |
| Net Weight | 2.54KG |
| Use environment | Working Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Working Humidity | ≤85%RH(non-condensing) |
| Storage Humidity | ≤85%RH(non-condensing) |
Difference between Optical bonding and Adhesive product
Benefits of Optical Bonding:
Better Readability
• Optical Bonding eliminates the reflections between display and
touchscreen / front glass. The refraction of light is reduced,
thus increasing the contrast and the optical brilliance.
No condensation
• By eliminating the air gap between the components no moisture
can penetrate.
No dust and dirt particles
• By eliminating the air gap no dust and dirt particles can penetrate.
Increased robustness
• A touch panel with Optical Bonding has an increased stability
and resistance to mechanical effects such as pressure, impact or
vibration. This way of installation significantly reduces the risk of
glass splintering or breakage.
Improved heat dissipation
• By filling the insulating air gap between the components, heat can
be derived to the outside.
Improved sensitivity
• The eliminated air gap between touch and glass has a positive
impact on touch detection and functionality, and the controller
does not need to constantly recalibrate due to the static connection
created.
Delivery Time:
- Samples in stock: 1~3 working days
- Customized project: 10~15days for samples
- Mass production: 10~18days

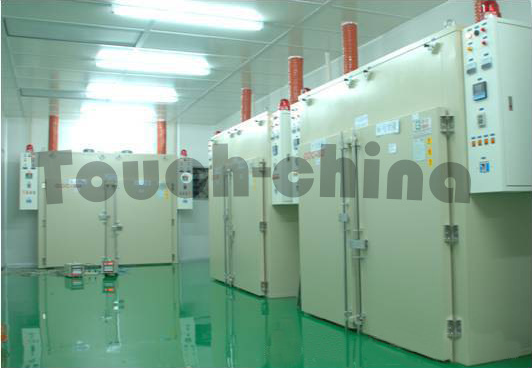

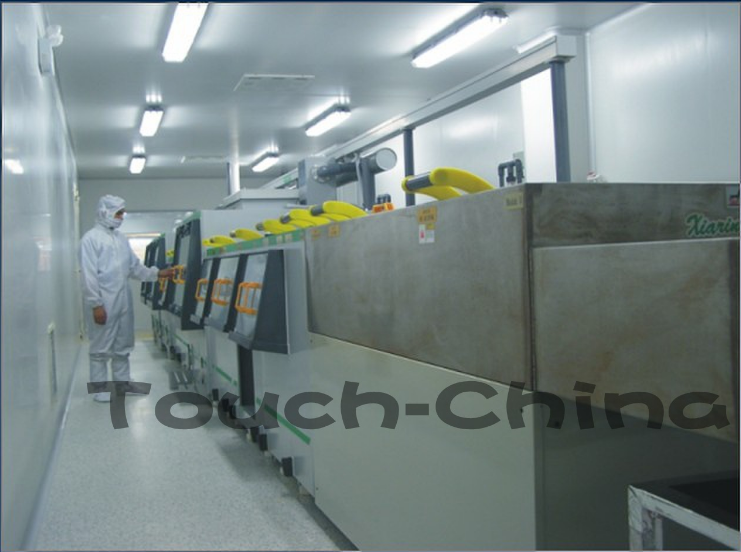

Working area:
